500CC Engine Include CVT and Gearbox

FOB Reference Price:Get Latest Price
US $1,350-1,500 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Stroke:
4 Stroke
Cold Style:
Water-Cooled
Start:
Electric
Cylinder NO.:
1 Cylinder
Ignition Method:
CDI
Displacement (ml):
500CC
Place of Origin:
Chongqing, China (Mainland)
Brand Name:
Gaokin
Model Number:
500CC
Supply Ability
Supply Ability:
30000 Set/Sets per Year
Packaging & Delivery
Packaging Details
Wooden case
Port
Chongqing
Lead Time :
30-45 days

500CC Engine  Include CVT and Gearbox



1.Gaokin mainly produce large displacement engine ( 300CC to 1100CC) and transmission system products(gear box, CVT, differential). Moreover, we can reserch and develop the products as per customers’ requirement, both forward-engineer and reverse-engineer.



2. Gaokin compliance TS16949, ISO9001, ISO14001, OHSAS18001 etc system certification, also bulit a complete quality operating system. Our engines after matched vehicle exhaust system reached and passed the EU IV emission certification.



3.GaoKin always follows strict and high standard to proceed any testing. Engine endurance bench testing over 300 hours,longer than most international brands; electrical start testing over 30,000 times; and whole vehicle temperature testing at -30°C.



4. GaoKin various engine types cover motorcycle, tricycle, ATV, UTV, snowmobile, new energy vehicle range-extender, electrical vehicle, water pump, generator and so on. And widely used by customers all over the world.



S/N one cylinder integrated engine ( Including Gearbox & CVT)
1Engine type4 stroke,vertical,water cooling,4 valves,OHC
2Engine displacement500cc Engine
3Bore dia. X Stroke mm*mm92*76
4Compression10.5:1
5Max. power & RPM kW(Hp)/rpm30(41)/6600
6Max. torque & RPM  N.m/rpm45/4900
7Min. fuel consumption g /Kw.h270
8Min. Idling stable RPM  r/min1500±150
9Balance method1st order dynamic balance
10Electric Generator typePermanent magnet AC type
11Magnetor generated power W>420
12Engine wire harnessDelphi EFI system
13Oil filter typePrimary filtration + refined filtration
14Gasoline grade

Above 92#

15Lubrication oil gradeAbove SG grade
16Lubrication oil total volume3.3
17Fuel pressure   bar3.0
18Lubrication typePressure + Splash
19Staring methodElectric start + Manual start(Manual start is optional)
20CVT typeRubber belt CVT
21Belt groove face angle28
22Speed adjusting range2.71~0.75
23Downhill auxiliary brakingYes
24Gearbox typeGear transmission
25Drive ratio from input shaft to front output shaft(high speed)3.282
26Drive ratio from input shaft to front output shaft(Low speed)6.154
27Drive ratio from input shaft to front output shaft(reverse)6.627
28Output typeFront & rear shafts output(4-wheel drive)
29Outline dimension (a×b×h)  mmSee drawing
30Mounting dimensionSee drawing
31Total N.W(Engine & Gearbox & CVT)65
32Applied to VehicleATV,UTV



Engine Dimensions

4 (2).jpg

500cc engine
a120.5
L1307
L2147.5
l1270.5
l297
b118.5
c39
d485.6
e304.6
f235.6
g86
h650.4
i210
j488.7
k40°

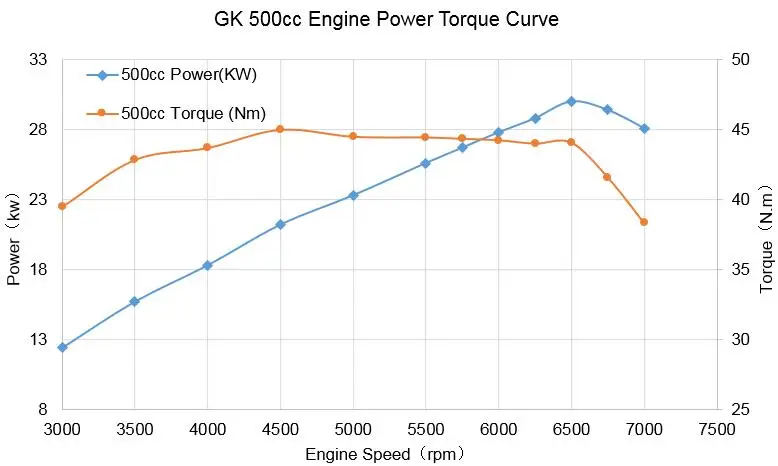

500cc power OR torque




rpm500 power Kw500 torque Nm
300012.439.47
350015.742.84
400018.343.69
450021.244.99
500023.344.5
550025.644.45
575026.744.35
600027.844.25
625028.844.01
65003044.08
675029.441.6
700028.138.34
