20KW/30KW Vehicle Range-Extended Power System

FOB Reference Price:Get Latest Price
US $3,000-3,200 / Set | 1 Set/Sets (Min. Order)
Supply Ability:
10000 Set/Sets per Year
Port:
Chongqing
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Chongqing, China (Mainland)
Brand Name:
Gaokin
Model Number:
GK
Output Type:
AC 3 Phase
Speed:
3600rpm
Frequency:
50/60HZ
Rated Power:
20KW / 30 KW
Rated Voltage:
235VAC
Rated Current:
60ADC
Packaging & Delivery
Packaging Details
Wooden case
Delivery Time
30-45 days

20KW/30KW Vehicle Range-Extended Power System



1 20KW-DC
Rated/Max power30KW-AC
2 3600rpm
Rated RPM4000rpm
3 300~600VDC
Rated voltage235VAC
4 60ADC
Max electricity
5 270g/Kw.h
Min fuel efficiency
6 20KW-DC
Rated/Max power30kw-AC
7 97Kg
Net weight77KG
8 V
Emission standardCNS:V
9 CAN2.08,RS232
Communication interface controller

 Cooling requirementEngine: water cooling
 The Requirement of  radiator:Ventilation
 Fuel typeAbove 92#/SG
 Control model Automotic/VCU control
 Online monitoring & parameter calibrationCAN/RS232 Switch
 Overall dimensions(L*W*H)mm510*502*507



Dimensions

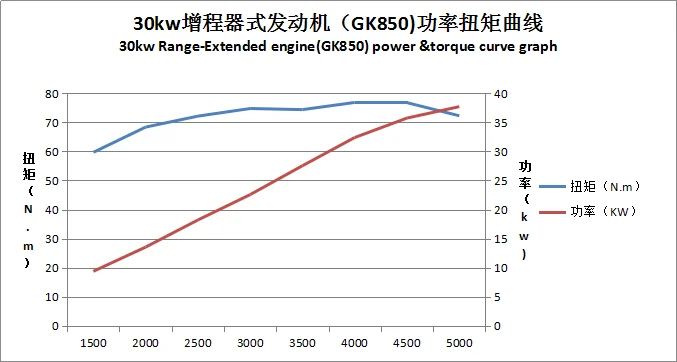

Power curve
