800CC V-Twin EFI Motorcycle Engine

FOB Reference Price:Get Latest Price
US $1,750-1,900 / Set | 1 Set/Sets (Min. Order)
Supply Ability:
30000 Set/Sets per Year
Port:
Chongqing
Report Suspicious Activity
Overview
Quick Details
Type:
Gas / Petrol Engine
No. of Cylinders:
2 Cylinder
Power:
45KW
Displacement:
800cc
Torque:
72 N.m
Place of Origin:
Chongqing, China (Mainland)
Brand Name:
Gaokin
Model Number:
800cc Engine
Warranty:
1 Years
Packaging & Delivery
Packaging Details
Wooden case
Delivery Time
30 -45 days

800CC 4 Stroke Two Wheel Motorcycle Engine  Parameters

S/N Twin cylinder integrated engine(Including Gearbox)
1Engine type4 stroke,vertical water-cooling, two cylinder,4 valves, overhead camshaft
2Engine displacement800cc engine
3Bore dia. X Stroke mm*mm91*61.5
4Compression10.3:1
5Max. power & RPM kW(Hp)/rpm45(62)/6500
6Max. torque & RPM  N.m/rpm72/5000
7Min. fuel consumption  g/kW.h270
8Min. Idling stable RPM r/min1250±100
9Electric Generator typePermanent magnet AC type
10Magnetor generated power  W>420
11Engine wire harnessDelphi EFI system
12Oil filter typePrimary filtration + refined
13Gasoline gradeAbove 92#
14Lubrication oil grade Above SG grade
15Lubrication oil total volume  L3.6
16Fuel pressure   bar3
17Lubrication typePressure + Splash
18Staring methodElectric start
19CVT typeFoot control,Forward International 6 Gears
20Gearbox typeOil bath  multi-disc type
21Primary Transmission  Ratio 2.21
22Viable Speed Gear Transmission Ratio 1st:2.846
2nd:2.056
3rd:1.583
4th:1.292
5th:1.138
6th:0.964
23Output typeChain Transmission
24Output axle rotation direction  Face output shaft anticlockwise rotation
25Exterior dimension (a×b×h)  mmAs attachment
26Installation dimensionAs attachment
27Total engine N.W. Kg60
28Applied to VehicleTwo-wheel Vehicle

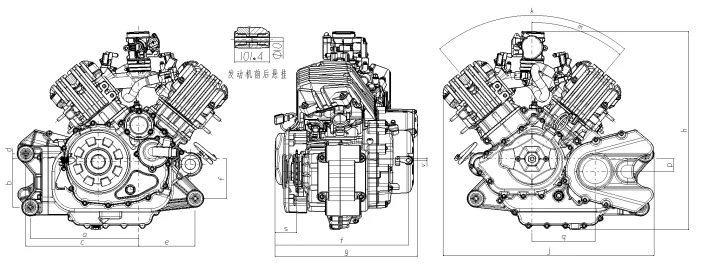

Engine Dimension

abcdefghjkmpqstv
3121393251516111440956960580°40°3618162.13834

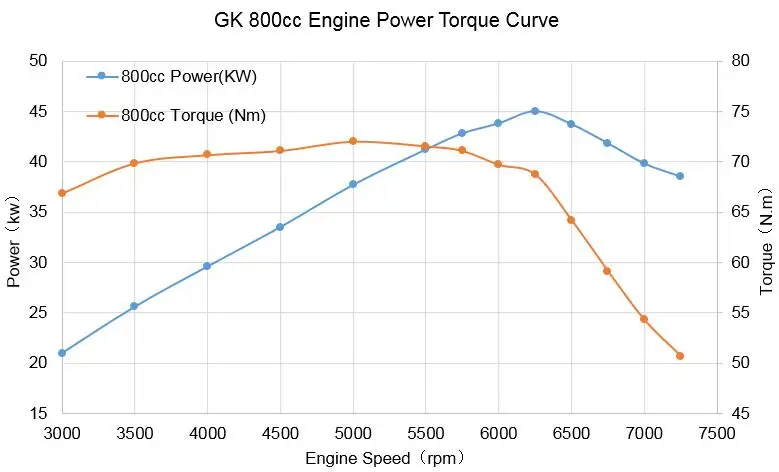

800cc power and torque



Rotate speed(rpm)800 power Kw800 torque Nm
30002166.85
350025.669.85
400029.670.67
450033.571.09
500037.772.01
550041.271.54
575042.871.09
600043.869.72
62504568.76
650043.764.21
675041.859.14
700039.854.3
725038.550.71
