800CC Snowmobile/ Go-kart Engine

FOB Reference Price:Get Latest Price
US $2,400-2,600 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Gas / Petrol Engine
No. of Cylinders:
2 Cylinder
Power:
45KW
Displacement:
800cc
Torque:
72 N.m
Place of Origin:
Chongqing, China (Mainland)
Brand Name:
Gaokin
Model Number:
800cc Engine
Warranty:
1 Years
Supply Ability
Supply Ability:
30000 Set/Sets per Year
Packaging & Delivery
Packaging Details
Wooden case
Port
Chongqing
Lead Time :
30 -45 days

800CC Snowmobile/ Go-kart Engine





Gaokin compliance TS16949, ISO9001, ISO14001, OHSAS18001 etc system certification, also bulit a complete quality operating system. Our engines after matched vehicle exhaust system reached and passed the EU IV emission certification.



GaoKin always follows strict and high standard to proceed any testing. Engine endurance bench testing over 300 hours,longer than most international brands; electrical start testing over 30,000 times; and whole vehicle temperature testing at -30°C.



GaoKin various engine types cover motorcycle, tricycle, ATV, UTV, snowmobile, new energy vehicle range-extender, electrical vehicle, water pump, generator and so on. And widely used by customers all over the world.



S/NEngine  ( not including CVT & Gearbox)
1Engine type2 stroke,two cylinders,water cooling
2Engine displacement800cc engine
3Bore dia. X Stroke mm*mm82*76
4Compression12.2:1
5Max. power & RPM kW(Hp)/rpm90/7800
6Max. torque & RPM  N.m/rpm110/7800
7Min. fuel consumption g /Kw.h620
8Min. Idling stable RPM  r/min1900±200
9Balance method
10Electric Generator typePermanent magnet AC type
11Magnetor generated power W>400
12Engine wire harness carburetor
13Oil filter type
14Gasoline gradeAbove 92#
15Lubrication oil gradeJASO FB grade or above
16Lubrication oil total volume
17Fuel pressure   bar
18Lubrication type
19Staring methodElectric start + Manual start
20CVT type
21Belt groove face angle
22Speed adjusting range
23Downhill auxiliary braking
24Gearbox type
25Drive ratio from input shaft to front output shaft(high speed)
26Drive ratio from input shaft to front output shaft(Low speed)
27Drive ratio from input shaft to front output shaft(reverse)
28Output type
29Outline dimension (a×b×h)  mmSee drawing
30Mounting dimensionSee drawing
31Total N.W(Engine & Gearbox & CVT)38
32Applied to VehicleSnowmobile

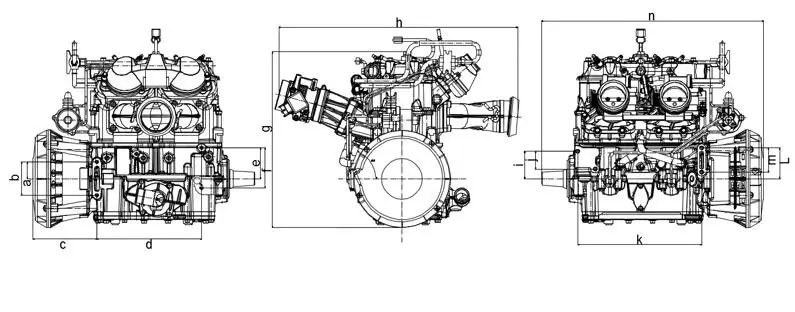

Engine dimensions


2 stroke 800cc engine
a35
b70
c134.4
d220
e64.7
f84.2
g370.1
h501
i57.7
j37.178
k260.1
L65
m51.2
n465.9





Engine Power Curve




rpm2 stroke800 power Kw2 stroke 800 torque Nm
300025.581.18
350030.884.04
400036.787.62
450043.692.53
500049.594.55
550057.499.67
575061.3101.81
600065.3103.94
625068.4104.52
650071.3104.76
675074.9105.97
700078.5107.1
725082.1108.15
750085.9109.38
780090110.19
800087.8104.81
850085.495.95
