Quick Details

  • Stroke: 4 Stroke
  • Cold Style: Water-Cooled
  • Start: Electric
  • Cylinder NO.: 1 Cylinder
  • Ignition Method: CDI
  • Displacement (ml): 600CC
  • Place of Origin: Chongqing, China (Mainland)
  • Brand Name: Gaokin
  • Model Number: 600CC

Packaging & Delivery

Packaging Details Wooden case
Delivery Time 30-45 days

600CC Snowmobile Motorcycle Tricycle Engine



1.Gaokin mainly produce large displacement engine ( 300CC to 1100CC) and transmission system products(gear box, CVT, differential). Moreover, we can reserch and develop the products as per customers’ requirement, both forward-engineer and reverse-engineer.



2. Gaokin compliance TS16949, ISO9001, ISO14001, OHSAS18001 etc system certification, also bulit a complete quality operating system. Our engines after matched vehicle exhaust system reached and passed the EU IV emission certification.







S/N one cylinder integrated engine ( Including Gearbox & CVT)  one cylinder integrated engine( not including CVT & Gearbox)
1Engine type4 stroke,vertical,water cooling,4 valves4 stroke,water cooling,8valves
2Engine displacement600cc Engine600cc Engine
3Bore dia. X Stroke mm*mm94*8594*85
4Compression10:019.7:1
5Max. power & RPM kW(Hp)/rpm31(42)/600031(42)/6000
6Max. torque & RPM  N.m/rpm52/425052/4250
7Min. fuel consumption g /Kw.h270270
8Min. Idling stable RPM  r/min1500±1501300±150
9Balance method1st order dynamic balance1st order dynamic balance
10Electric Generator typePermanent magnet AC typePermanent magnet AC type
11Magnetor generated power W350(12V)or 1300(60V)350(12V)or 1300(60V)
12Engine wire harnessDelphi EFI or carburetorDelphi EFI or carburetor
13Oil filter typePrimary filtration + refined filtrationPrimary filtration + refined filtration
14Gasoline gradeAbove 93#Above 93#
15Lubrication oil gradeAbove SG gradeAbove SG grade
16Lubrication oil total volume2.32.3
17Fuel pressure   bar33
18Lubrication typePressure + SplashPressure + Splash
19Staring methodElectric start + Manual start(Manual start is optional)Electric start + Manual start
20CVT typeRubber belt CVT
21Belt groove face angle28
22Speed adjusting range2.71~0.75
23Downhill auxiliary brakingYes
24Gearbox typeGear transmission
25Drive ratio from input shaft to front output shaft(high speed)2.886
26Drive ratio from input shaft to front output shaft(Low speed)5.292
27Drive ratio from input shaft to front output shaft(reverse)5.451
28Output typeFront & rear shafts output(4-wheel drive)
29Outline dimension (a×b×h)  mmSee drawingSee drawing
30Mounting dimensionSee drawingSee drawing
31Total N.W(Engine & Gearbox & CVT)7041
32Applied to VehicleATV,UTVMotorcycle

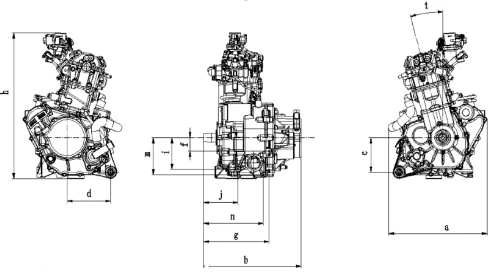

Engine Dimensions

4 stroke engineabhcdfgijmnts
600cc engine3963935681351765326412314014524115°

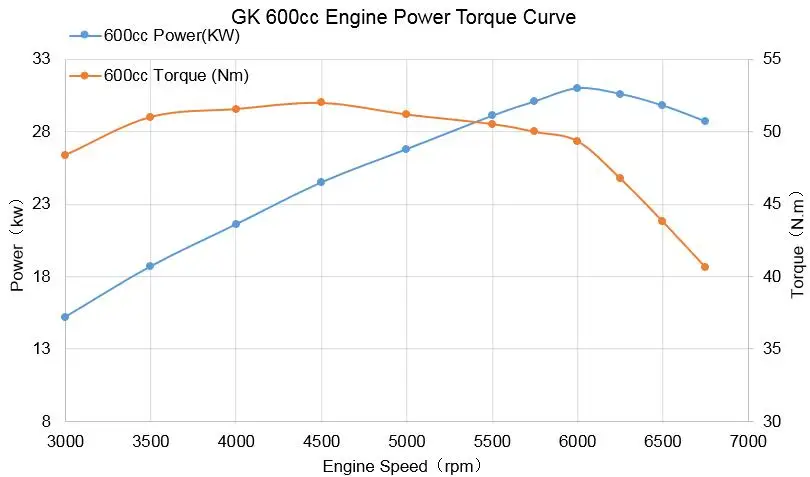

600cc power OR torque



rpm600 powerKw600 torque Nm
300015.248.39
350018.751.02
400021.651.57
450024.551.99
500026.851.19
550029.150.53
575030.149.99
60003149.34
625030.646.76
650029.843.78
675028.740.61
7000
7250
7500
