650CC Double Cylinder Motorcycle Engine

FOB Reference Price:Get Latest Price
US $1,700-1,850 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Stroke:
4 Stroke
Cold Style:
Water-Cooled
Start:
Electric
Cylinder NO.:
2 Cylinder
Ignition Method:
CDI
Displacement (ml):
650CC
Place of Origin:
Chongqing, China (Mainland)
Brand Name:
Gaokin
Model Number:
650CC
Supply Ability
Supply Ability:
30000 Set/Sets per Year
Packaging & Delivery
Packaging Details
Wooden case
Port
Chongqing
Lead Time :
30-45 days

650CC Double Cylinder Motorcycle Engine



Gaokin compliance TS16949, ISO9001, ISO14001, OHSAS18001 etc system certification, also bulit a complete quality operating system. Our engines after matched vehicle exhaust system reached and passed the EU IV emission certification.





GaoKin various engine types cover motorcycle, tricycle, ATV, UTV, snowmobile, new energy vehicle range-extender, electrical vehicle, water pump, generator and so on. And widely used by customers all over the world.



S/NTwin cylinder integrated engine(Including Gearbox)
1Engine type4 stroke,vertical water-cooling, two cylinder,8 valves, overhead camshaft
2Engine displacement650cc engine
3Bore dia. X Stroke mm*mm 82*61.5
4Compression10.5:1
5Max. power & RPM kW(Hp)/rpm39(53)/6750
6Max. torque & RPM  N.m/rpm58/5750
7Min. fuel consumption  g/kW.h270
8Min. Idling stable RPM  r/min1500±100
9Electric Generator type Permanent magnet AC type
10Magnetor generated power W>420
11Engine wire harnessDelphi EFI system
12Oil filter typePrimary filtration + refined
13Gasoline gradeAbove 92#
14Lubrication oil grade Above SG grade
15Lubrication oil total volume  L3.6
16Fuel pressure   bar3
17Lubrication typePressure + Splash
18Staring methodElectric start
19CVT typeFoot control,Forward International 6 Gears
20Gearbox typeOil bath  multi-disc type
21Primary Transmission  Ratio 2.21
22Viable Speed Gear Transmission Ratio 1st:2.846
2nd:2.056
3rd:1.583
4th:1.292
5th:1.138
6th:0.964
23Output typeChain Transmission
24Output axle rotation direction  Face output shaft anticlockwise rotation
25Exterior dimension (a×b×h)  mmAs attachment
26Installation dimensionAs attachment
27Total engine N.W. Kg60
28Applied to VehicleTwo-wheel Vehicle

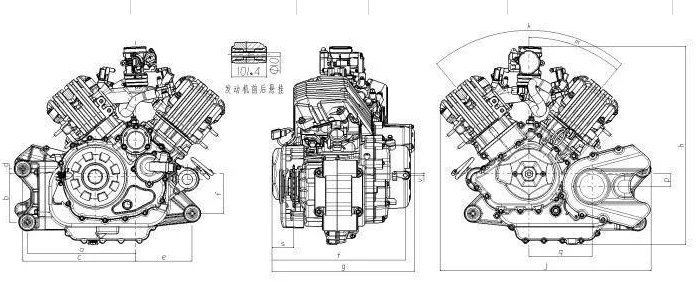

Engine Dimensions




650cc engineabcdefghjkmpqstv
31213932515161114408.6568.8560580°40°36181.1462.1382.54





650CC power or torque




rpm650 power  Kw650  torque Nm
300016.552.53
350019.954.3
400023.155.15
450026.456.03
50003057.3
550033.357.82
57503558.13
600036.257.62
625037.256.84
650037.855.54
67503955.18
700037.250.75
725035.546.76
